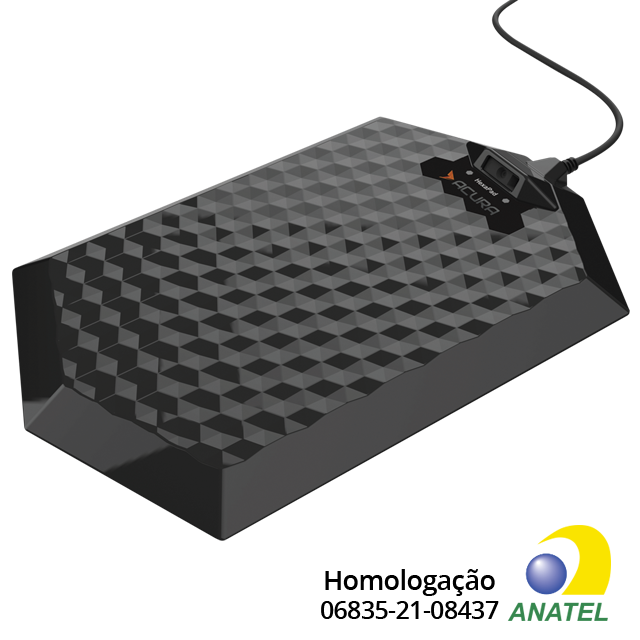

HexaPad-10 Barcode
cod. 100.646 (Black), 100.657 (Gray), 100.658 (White)
Description
The UHF HexaPad-10 Barcode reader is a tabletop reader with UHF RFID technology developed with a Near Field antenna with a restricted reading field, suitable for checkout operations, in addition to having an integrated barcode reader that can be used in a simultaneous or separate reading of tags. It is a slim profile reader with a modern and elegant design. It does not need an independent power supply as it works directly connected to the USB of any computer or POS. Emulates keyboard to automatically read tags and barcodes. It can even be configured to write tags and can be easily integrated into any application or POS solution, with an API for development.
Features / Benefits- The reader can work with independent readings between the RFID tags and the barcode (leaving only one on or both on);
- Communication and power via USB;
- Standalone mode with automatic reading and transparent mode for software development and programming;
- API for software development in C, NET (C#) and Java;
-
TECHNICALS_CHARACTERISTICS
Supported Protocols EPCGlobal Gen2 (ISO 18000-6C) / EPCGlobal Gen2 V2 (ISO 18000-63) (transparent mode) Maximum Reading Distance 50cm (The reading distance may vary depending on the tag used and the reader's usage environment) Connection USB male type A connector Bar Code Reader Yes Anatel 06835-21-08437 RF Modulation Frequency Hopping / PR-ASK / M2, M4, M8 -
ELECTRICAL_CHARACTERISTICS
Power Input voltage: 5VDC +/- 1%. (Host USB port). Maximum Ripple from the source: 200mVpp @20MHz. -
PHYSICAL_CHARACTERISTICS
Dimensions 270,10 x 175 x 24mm Operating Temperature -10°C a +65°C Water Tightness Indoor use, no weather protection Integrated Antenna NearField -
