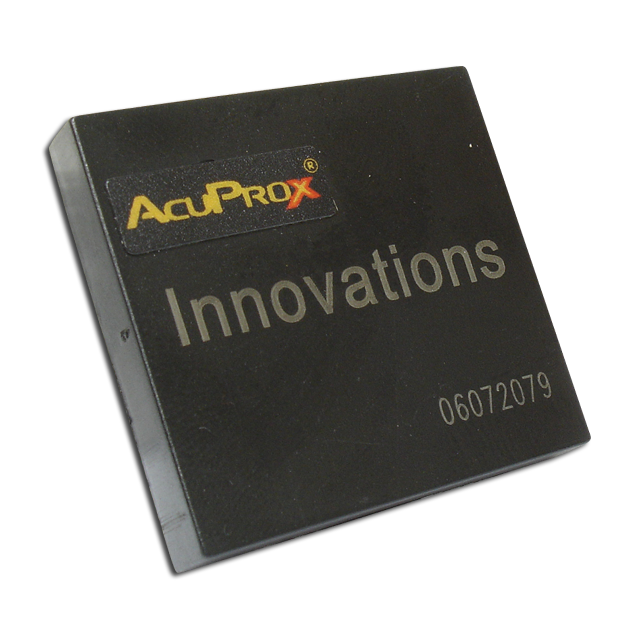

AX-20LA
cod. 100.531
The AX-20LA reader is part of the AcuProx line of access control products. It is suitable for applications that use cards and tags that operate at 125 kHz. With reduced dimensions it is ideal to integrate ratchets and similar equipment for access control.
Resources / ApplicationsThe AX-20LA is a small reader but with excellent reading performance, ranging from 9 to 17 cm with AcuProx line cards. Due to its size, it is mainly indicated for use in time clocks, ratchets and other similar equipment in access control applications. It allows three communication interfaces in the same product: TTL RS-232, Wiegand 26 bits and ABA TK2. In addition, it features pinout which facilitates connection to the board. Thus, the AX-20LA reading module is a simple and intelligent solution for most applications in radio frequency identification.
-
TECHNICALS_CHARACTERISTICS
Supported Protocols ISO 11784/85. Transponder Read only AcuProx cards and tags. Maximum Reading Distance Up to 18 cm with an AcuProx Card ISO Up to 18 cm with an AcuProx Card Up to 25 cm with an AcuProx Card HP. Data Communication Wiegand 26 bits;Magstripe (ABA TK2);Serial TTL (invertido) e CMOS Certifications FCC, CE, ROHS and C-Tick RF Modulation ASK. -
ELECTRICAL_CHARACTERISTICS
Power 2,8 to 5 VDC. Consumption 45 mA @ 5 VDC. -
PHYSICAL_CHARACTERISTICS
Dimensions 38,5 x 40 x 6,8 mm Operating Temperature -10° to 60°C. relative humidity of the wall 10% to 90% non-condensing. Water Tightness Not applicable. Installation Built-in equipment. -
