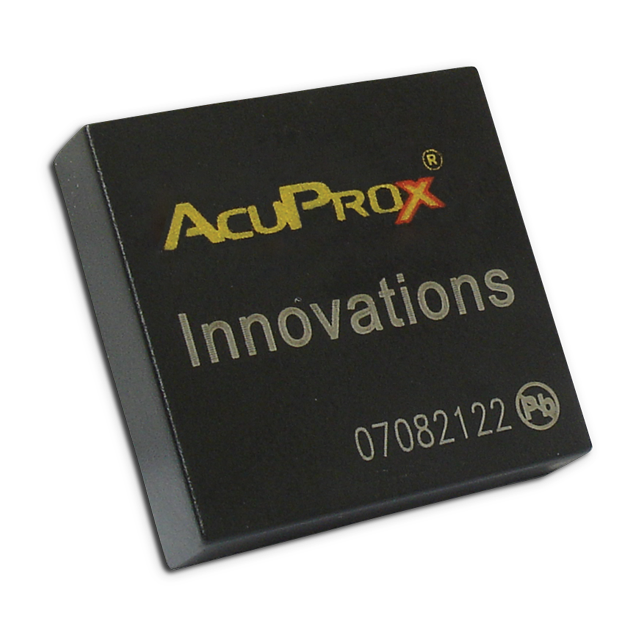

AX-12LA
cod. 100.530
The AX-12LA reader is part of the AcuProx line of access control products. It is suitable for applications that use cards and tags that operate at 125 kHz. With reduced dimensions it is ideal to integrate ratchets and similar equipment for access control.
Resources / ApplicationsThe AX-12LA is a small reader but with great reading performance, with a range of up to 18 cm with cards of the AcuProx line. Due to its size, it is mainly indicated for use in point clocks, ratchets and other similar equipment in access control applications. It allows three communication interfaces in the same product: TTL RS-232, Wiegand 26 bits and ABA TK2. In addition, it features pinout which facilitates connection to the board. Thus, the AX-12LA reading module is a simple and intelligent solution for most applications in radio frequency identification.
-
TECHNICALS_CHARACTERISTICS
Supported Protocols ISO 11784/85. Transponder Read only AcuProx cards and tags. Maximum Reading Rate Up to 12 cm with an AcuProx Card ISO Up to 12 cm with an AcuProx Card Up to 18 cm with an AcuProx Card HP. Data Communication Wiegand 26 bits;Magstripe (ABA TK2);Serial TTL (invertido) e CMOS Certifications Anatel, FCC, CE, ROHS e C-Tick RF Modulation ASK. -
ELECTRICAL_CHARACTERISTICS
Power 2,8 to 5 VDC. Consumption 35 mA @ 5 VDC. -
PHYSICAL_CHARACTERISTICS
Dimensions 26,4 x 25,3 x 6 mm. Weight 6 g. Operating Temperature -10° to 60°C. relative humidity of the wall 10% to 90% non-condensing. Water Tightness Not applicable. Installation Built-in equipment. -
